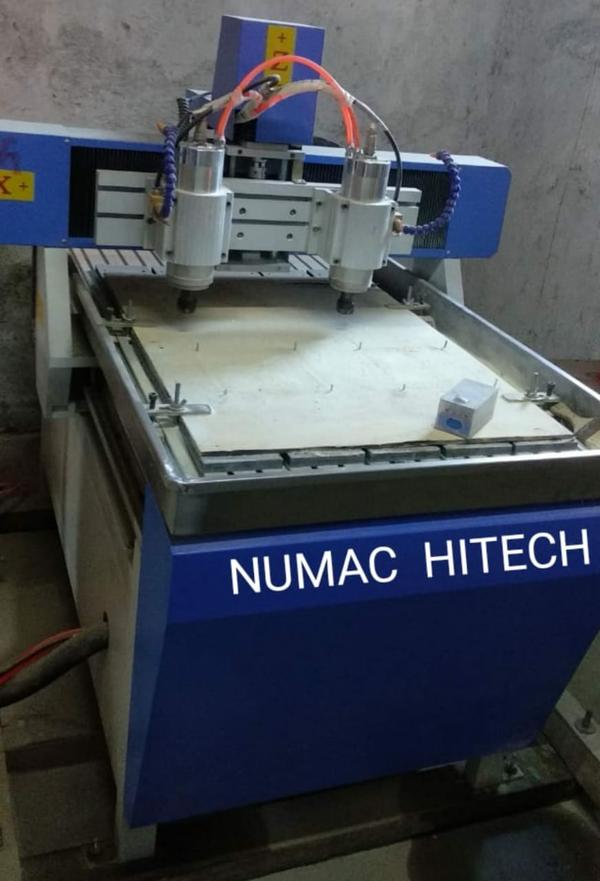

Numac Hitech offers a range of CNC router machines, including models with double spindles, designed to cater to various material processing needs. Below are the technical specifications for their 6090, 1325, and 1530 double spindle CNC router machines: 1. NH6090 2-Spindle CNC Aluminum Router Machine Working Area: 600 x 900 mm Spindle Power: 1-3 kW Spindle Type: Double Spindle Automatic Grade: Automatic Application: Engraving and routing of aluminum, brass, and copper Certification: CE Certified Voltage: 380V Weight: 100-1000 kg Warranty: 1 Year This machine features an advanced mechanism, is easy to maintain, and offers high productivity. NUMACHITECH.COM 2. 1325 CNC Router Machine Working Area: 1300 x 2500 mm Spindle Power Options: 3.5 kW, 4.5 kW, or 6 kW Spindle Speed: 0-18,000 RPM or 0-24,000 RPM Spindle Head Type: Single Spindle Suitable Materials: Wood, MDF, ACP, WPC, Corian, Acrylic Features: Equipped with Easy Servo Motor and Drive (Leadshine) This model is designed for efficient processing of various materials with high precision. NUMACHITECH.COM 3. NH1530 CNC Router Machine Working Area: 1500 x 3000 mm Spindle Power: Customizable based on requirements Spindle Head Type: Single Spindle Suitable Materials: Wood, Acrylic, Plastic, Aluminum, Copper, Brass, MDF, Corian Voltage: 440V Features: Advanced mechanism, high productivity, and low maintenance This machine is versatile and suitable for a wide range of material processing applications. NUMACHITECH.COM For more detailed information or specific inquiries, you can contact Numac Hitech directly: Address: 16-1, Bombay Cotton Mill Estate, Dattaram Lad Path, Kalachowki, Mumbai - 400033, Maharashtra, India Phone: +91-9821026895, +91-8655080774 Email: numachitech@gmail.com

A PCB CNC drilling machine is designed for precise drilling and routing of printed circuit boards (PCBs). These machines are essential for creating the holes needed for component leads and vias in PCBs. Below are the typical technical specifications of a PCB CNC drilling machine: ### *Technical Specifications:* 1. *Working Area:* - *X, Y Travel:* Common sizes include: - *600 mm x 900 mm - *1200 mm x 1200 mm - Larger machines may have work areas of 600 mm x 400 mm or more. - *Z-Axis Travel:* Typically 50 mm to 100 mm 2. *Spindle:* - *Spindle Power:* 0.8 kW to 2.2 kW (depending on the model) - *Spindle Speed:* 24,000 to 60,000 RPM, high-speed spindles are preferred for fine drilling - *Collet Size:* Typically ER8, ER11, or custom collets for PCB drill bits 3. *Positioning Accuracy:* - *Positioning Accuracy:* ±0.01 mm - *Repeatability:* ±0.005 mm 4. *Drilling Capability:* - *Drill Bit Diameter:* Typically ranges from 0.6 mm to 3.2 mm - *Max Drilling Speed:* High-speed drilling with rates up to 120 hits per minute, depending on machine and material 5. *Control System:* - *Controller:* PC-based or DSP control systems - *Software Compatibility:* Compatible with Gerber files and CAD/CAM software specific to PCB design (e.g., Altium Designer, Eagle, KiCad) - *File Formats Supported:* G-code, Excellon, NC Drill, etc. 6. *Drive System:* - *Motors:* Precision stepper motors or servo motors - *Transmission:* Ball screw transmission for smooth and accurate movement - *Guide Rails:* Linear guide rails for high precision 7. *Power Supply:* - *Voltage:* Typically 220V/50Hz, though smaller machines may operate at 110V - *Power Consumption:* Ranges from 1 kW to 3 kW depending on the machine's spindle power and additional features 8. *Table Structure:* - *Table Surface:* Flat surface, often with a vacuum table or fixture system to secure the PCB - *Fixture System:* Adjustable clamps or vacuum bed for securing PCB during drilling 9. *Tool Cooling and Dust Extraction:* - *Cooling Method:* Air cooling or mist cooling system for the spindle and drill bits - *Dust Collection:* Integrated dust extraction system to remove debris and maintain a clean working environment 10. *Machine Dimensions and Weight:* - *Dimensions:* Compact design, typically around 800 mm x 600 mm x 600 mm, though larger models may be bigger - *Weight:* Generally ranges from 100 kg to 300 kg, depending on the build and features 11. *Optional Features:* - *Automatic Tool Changer (ATC):* For changing drill bits automatically during the process - *Vision System:* For alignment and inspection, ensuring precise drilling - *Router Capability:* Some machines also offer routing capabilities for cutting out the PCB outline - *Multi-Head Design:* Allows for simultaneous drilling of multiple holes 12. *Safety Features:* - *Emergency Stop Button:* For immediate shutdown in case of emergency - *Cover/Enclosure:* To protect the operator from debris and noise These specifications can vary based on the manufacturer and specific model, so it's important to verify the exact specs to match your production needs. PCB CNC drilling machines are critical for high-precision work, and selecting the right one depends on the complexity and volume of your PCB production.

Numac Hitech, established in 2010 and based in Mumbai, Maharashtra, specializes in manufacturing and supplying CNC stone engraving routers designed for precision and efficiency in stone processing applications. ​​ Key Features of Numac Hitech's CNC Engraving Routers: Versatile Applications: Capable of engraving and cutting various stone materials, including granite, marble, and sandstone, making them suitable for industries such as monument crafting, architectural detailing, and decorative art. ​​ High-Performance Spindles: Equipped with robust spindles operating at high speeds, ensuring smooth and precise operations on hard stone surfaces. ​​ Robust Construction: Built with heavy-duty frames and components to withstand the rigors of stone machining, ensuring durability and consistent performance. ​​ Advanced Control Systems: Utilize user-friendly interfaces compatible with various design software, facilitating efficient workflow management and intricate design execution. ​​ Customization Options: Available in different models, such as the CNC Engraving Machine, to meet diverse application needs and accommodate various stone sizes and thicknesses. ​​Numac Hitech's CNC engraving routers are engineered to deliver high productivity and precision, catering to both small-scale and large-scale stone engraving projects. Their commitment to quality and innovation has established them as a reputable manufacturer in the CNC machinery industry. ​​​​

A PCB CNC drilling machine is designed for precise drilling and routing of printed circuit boards (PCBs). These machines are essential for creating the holes needed for component leads and vias in PCBs. Below are the typical technical specifications of a PCB CNC drilling machine: ### *Technical Specifications: * 1. *Working Area:* - *X, Y Travel:* Common sizes include: - *600MM X 900MM X 80MM - Larger machines may have work areas of 600 mm x 400 mm or more. - *Z-Axis Travel:* Typically 50 mm to 100 mm 2. *Spindle:* - *Spindle Power:* 0.8 kW to 2.2 kW (depending on the model) - *Spindle Speed:* 20,000 to 60,000 RPM, high-speed spindles are preferred for fine drilling - *Collet Size:* Typically ER8, ER11, or custom collets for PCB drill bits 3. *Positioning Accuracy:* - *Positioning Accuracy:* ±0.01 mm - *Repeatability:* ±0.005 mm 4. *Drilling Capability:* - *Drill Bit Diameter:* Typically ranges from 0.5 mm to 3.2 mm - *Max Drilling Speed:* High-speed drilling with rates up to 120 hits per minute, depending on machine and material 5. *Control System:* - *Controller:* PC-based or DSP control systems - *Software Compatibility:* Compatible with Gerber files and CAD/CAM software specific to PCB design (e.g., Altium Designer, Eagle, KiCad) - *File Formats Supported:* G-code, Excellon, NC Drill, etc. 6. *Drive System:* - *Motors:* Precision stepper motors or servo motors - *Transmission:* Ball screw transmission for smooth and accurate movement - *Guide Rails:* Linear guide rails for high precision 7. *Power Supply:* - *Voltage:* Typically 220V/50Hz, though smaller machines may operate at 110V - *Power Consumption:* Ranges from 1 kW to 3 kW depending on the machine's spindle power and additional features 8. *Table Structure:* - *Table Surface:* Flat surface, often with a vacuum table or fixture system to secure the PCB - *Fixture System:* Adjustable clamps or vacuum bed for securing PCB during drilling 9. *Tool Cooling and Dust Extraction:* - *Cooling Method:* Air cooling or mist cooling system for the spindle and drill bits - *Dust Collection:* Integrated dust extraction system to remove debris and maintain a clean working environment 10. *Machine Dimensions and Weight:* - *Dimensions:* Compact design, typically around 800 mm x 600 mm x 600 mm, though larger models may be bigger - *Weight:* Generally ranges from 100 kg to 300 kg, depending on the build and features 11. *Optional Features:* - *Automatic Tool Changer (ATC):* For changing drill bits automatically during the process - *Vision System:* For alignment and inspection, ensuring precise drilling - *Router Capability:* Some machines also offer routing capabilities for cutting out the PCB outline - *Multi-Head Design:* Allows for simultaneous drilling of multiple holes 12. *Safety Features:* - *Emergency Stop Button:* For immediate shutdown in case of emergency - *Cover/Enclosure:* To protect the operator from debris and noise These specifications can vary based on the manufacturer and specific model, so it's important to verify the exact specs to match your production needs. PCB CNC drilling machines are critical for high-precision work, and selecting the right one depends on the complexity and volume of your PCB production.

A stone CNC router machine is designed specifically for engraving, cutting, and shaping various types of stone, including marble, granite, quartz, and other hard materials. Below are the typical technical specifications of a stone CNC router machine: ### *Technical Specifications:* 1. *Working Area:* - *X, Y, Z Travel:* Varies widely, common sizes include: - *1300 mm x 2500 mm x 200 mm (4.3 ft x 8.2 ft x 7.9 in)* - *1500 mm x 3000 mm x 300 mm (4.9 ft x 9.8 ft x 11.8 in)* - Larger sizes available depending on the machine - *Table Size:* Similar to the X, Y dimensions 2. *Spindle:* - *Spindle Power:* 5.5 kW to 9.0 kW or more, depending on the model and material requirements - *Spindle Speed:* 0-24,000 RPM - *Cooling System:* Water-cooled spindle for continuous operation - *Collet Size:* ER20 or ER25, depending on spindle type 3. *Positioning Accuracy:* - *Positioning Accuracy:* ±0.05 mm - *Repeatability:* ±0.02 mm 4. *Transmission:* - *X, Y Axis Transmission:* Helical rack and pinion for high precision - *Z Axis Transmission:* Ball screw transmission for stable and precise movement - *Guide Rails:* Heavy-duty linear guide rails (often Hiwin or similar) 5. *Control System:* - *Controller:* NC Studio, DSP, Syntec, or Mach3 control systems - *Software Compatibility:* Compatible with CAD/CAM software like ArtCAM, Type3, Alphacam, etc. - *File Formats Supported:* G-code, HPGL, U00, MMG, etc. 6. *Drive System:* - *Motors:* Stepper motors or servo motors, depending on the model - *Drivers:* High-torque drivers for stability and power 7. *Power Supply:* - *Voltage:* 380V/50Hz for industrial machines (can vary by region) - *Power Consumption:* Typically ranges from 7 kW to 15 kW depending on the machine's spindle power and additional features 8. *Table Structure:* - *Table Surface:* T-slot table with clamps for securing stone slabs - *Bed Structure:* Heavy-duty steel frame for vibration reduction and durability 9. *Tool Cooling System:* - *Cooling Method:* Water circulation system to cool the tool during stone cutting - *Water Pump:* Industrial-grade water pump included for efficient cooling 10. *Dust and Water Management:* - *Water Spray System:* Integrated water spray to minimize dust and cool the cutting area - *Dust Collection:* Optional dust collection system for dry processing 11. *Machine Dimensions and Weight:* - *Machine Dimensions:* Varies depending on working area; typically large and heavy - *Weight:* Ranges from 1,500 kg to 3,500 kg (or more) depending on the size and structure of the machine 12. *Optional Features:* - *Rotary Axis:* For 3D engraving and sculpting of cylindrical objects - *Automatic Tool Changer (ATC):* For efficient tool switching during complex jobs - *Vacuum Table:* For securing thin or delicate stone materials - *4th/5th Axis:* For more complex, multi-dimensional cutting and engraving These specifications can vary depending on the manufacturer and specific model, so it's important to verify the exact specs when selecting a stone CNC router machine for your specific needs.

Technical Specification DOUBLE HEAD WOOD CNC ROUTER • Worktable board (mm) : 1200 x 2500 X 3000mm or Zaxis 100mm • Spindle Motor : 3.5KW / 4.5KW / 5.5 KW / 6KW (Water cooling Processor & AIR COOL) • Rotating Speed of the Spindle : 18000RPM / 24,000 RPM • Working Mode : Stepper. • Drive Mechanism : Ballscrew for X,Y,Z Axis • Frame : Cast – Iron/ aluminum Wholly • Rail : round linear rail,round Orbits from Taiwan. • Motion positioning accuracy : ± 0.02/300mm. • Repositioning accuracy : ± 0.01mm • Max motion Speed : 8,000 mm/min • Max working speed : 6,000 mm/min • Engraving Tools : Ø3.175mm, Ø6.00mm. • Dictate Formate : G code, *uoo, *mmg, *plt • Operating voltage : AC220V/50/60Hz. • Operating system : Ncstudio PC control /DSP CONTROLLER • Interface : USB. • Flash Memory : 128M.

Product Details Warranty 1 Year Country of Origin India Weight 100- 450kg Automatic Grade Automatic Product Code NH6090 with single Spindle & Double Spindle We are based in Mumbai(India) and we have carved a niche for ourselves in the market by offering quality products. We have superior storage capacity to safely store the extensive product range that we offer. Our massive and well-maintained storage space is well-connected with the shipping unit. Features : Advanced mechanishm Easy to maintain High productivity

Product Details Certification CE Certified Voltage 380V Type CNC Aluminum Router Machine Weight 100-1000kg Warranty 1 Year Product Code NH6090 2SPINDLE To guard our complete range of goods from exterior causes that can be damaging, we have a high-tech packing unit armed with the newest safe packaging technologies and supplies. We carry out the quality examinations only under the vigil supervision of the quality auditors. Features : Advanced mechanishm Easy to maintain High productivity A CNC aluminum router machine is designed specifically for cutting, milling, and machining aluminum and other metals with high precision. These machines are robust and capable of handling the unique properties of aluminum, such as its softness and tendency to produce chips. Here are some key features and considerations: Key Features: Spindle Power and Speed: High-RPM Spindle: Aluminum machining requires high spindle speeds to effectively cut through the material. Look for machines with spindles capable of reaching high RPMs (usually 10,000 RPM or more). Cooling System: Some machines have built-in cooling systems or provisions for external cooling to manage heat during machining. Precision and Accuracy: Linear Guides and Ball Screws: High-quality linear guides and ball screws ensure precise movement and reduce play, which is crucial for detailed aluminum work. High Tolerance: CNC routers for aluminum need to operate within tight tolerances to achieve accurate results. Material Handling: Workholding Systems: Secure clamping systems are essential to prevent movement during machining. Consider machines with versatile clamping solutions. Chip Removal: Efficient chip removal systems or vacuums help in maintaining a clean workspace and preventing chip buildup, which can affect machining quality. Frame and Build: Sturdy Construction: A heavy-duty frame is important to minimize vibrations and maintain precision during operation. Rigidity: The machine should have a rigid build to handle the forces involved in aluminum machining. Software and Control: CAD/CAM Software: The machine should be compatible with CAD (Computer-Aided Design) and CAM (Computer-Aided Manufacturing) software for designing and generating toolpaths. User Interface: An intuitive control system is essential for ease of use and efficient operation. Applications: Prototyping: Ideal for creating prototypes and parts in aluminum for various industries. Custom Parts: Used for manufacturing custom components and parts for machinery, automotive, aerospace, and more. Precision Machining: Suitable for high-precision tasks like engraving and detailed cutouts. Considerations: Tooling: Use appropriate tools designed for aluminum, such as end mills and drills with coatings to reduce wear. Speed and Feed Rates: Proper adjustment of speed and feed rates is critical to avoid issues like tool breakage or poor surface finish.

Product Details Application Wood Working / Acrylic / 2D & 3D Work Voltage 230V AC Type Router Machine Weight 1350 kg After-Sales Service Provided Yes Product Code NH1325 The wide range of products is a result of intense quality analysis of raw materials at the initial stages of production. With stern checking, the products are examined with utmost precision. As we have an efficient supply chain network, our company is able to fulfill bulk orders with ease and make deliveries on time. Features : Advanced mechanishm Low maintenance High productivity A 3D wood CNC router machine is designed specifically for carving and machining intricate three-dimensional shapes out of wood. Here are some key features and considerations for such machines: Key Features: 3D Capabilities: High Precision: These machines are equipped with high-resolution stepper or servo motors to achieve detailed 3D carvings. Spindle Power: Often comes with powerful spindles capable of handling various wood types and achieving smooth finishes. Software Integration: CAD/CAM Software: Utilizes CAD (Computer-Aided Design) and CAM (Computer-Aided Manufacturing) software to design and generate toolpaths for 3D carving. Compatibility: Ensure the software is compatible with your router’s control system. Work Area: Size: The work area varies, but larger machines like the 1325 CNC router can handle bigger projects, while smaller machines are suited for detailed, smaller-scale work. Z-Axis Travel: The Z-axis (vertical movement) is crucial for 3D work, allowing the machine to carve at different depths. Material Handling: Clamping and Fixturing: Proper clamping systems are essential to hold the wood securely in place during carving. Dust Collection: Woodworking generates a lot of dust, so a good dust collection system is important to keep the workspace clean and maintain machine performance. Machine Build: Frame: Sturdy construction reduces vibrations and enhances precision. Guides and Bearings: High-quality linear guides and bearings are crucial for smooth and accurate movement. Applications: Artistic Carvings: Ideal for creating detailed art pieces and sculptures. Furniture Making: Used for custom furniture designs and intricate wood inlays. Signage: Perfect for creating decorative and functional wooden signs. If you have any specific requirements or questions about features, setup, or maintenance, feel free to ask!
