Introduction to Numac Hitech Multi-Purpose Stone & Wood CNC Router Machine Numac Hitech presents its robust and high-performance Multi-Purpose Stone & Wood CNC Router Machine, engineered for heavy-duty engraving, carving, and cutting applications across both hard materials like granite and marble, and soft materials like wood, MDF, and acrylic. Designed to meet the needs of fabricators, artisans, and manufacturers, this machine combines strength, precision, and versatility in one powerful solution. Built with a rigid frame, powerful spindle, and advanced motion control system, the machine ensures smooth operation even during high-load stone engraving, while maintaining fine detailing on wood and composite materials. Key Features: Heavy-Duty Structure Reinforced steel frame and thick gantry ensure stability during stone carving and long-term durability. High-Power Spindle (5.5kW–7.5kW) Capable of handling tough materials like granite, marble, and sandstone, as well as softwoods and engineered boards. Water-Cooling & Dust Control System Optional water cooling and dust collection systems ensure clean operation across different materials. Dual-Purpose Tooling Compatibility Supports both diamond tools for stone and carbide bits for wood, making it truly multi-functional. Precision Linear Guideways & Ball Screws Ensures smooth and accurate motion for deep engraving and 3D carving. User-Friendly CNC Controller Compatible with industry-standard G-code and software like ArtCAM, Aspire, and Type3. Applications: Stone Work: Temple Art & Idols Stone Inlays & Jali Work Marble Nameplates 3D Granite Carvings Wood Work: Furniture Design & Panels Wooden Doors & Frames Decorative Wall Art Sign Boards & Custom Carving

Numac Hitech presents its robust and high-performance Stone & Wood CNC Router Machine, engineered for heavy-duty engraving, carving, and cutting applications across both hard materials like granite and marble, and soft materials like wood, MDF, and acrylic. Designed to meet the needs of fabricators, artisans, and manufacturers, this machine combines strength, precision, and versatility in one powerful solution. Built with a rigid frame, powerful spindle, and advanced motion control system, the machine ensures smooth operation even during high-load stone engraving, while maintaining fine detailing on wood and composite materials.

Numac Hitech presents its robust and high-performance Multi-Purpose Stone & Wood CNC Router Machine, engineered for heavy-duty engraving, carving, and cutting applications across both hard materials like granite and marble, and soft materials like wood, MDF, and acrylic. Designed to meet the needs of fabricators, artisans, and manufacturers, this machine combines strength, precision, and versatility in one powerful solution. Built with a rigid frame, powerful spindle, and advanced motion control system, the machine ensures smooth operation even during high-load stone engraving, while maintaining fine detailing on wood and composite materials.

Numac Hitech presents its robust and high-performance Multi-Purpose Stone & Wood CNC Router Machine, engineered for heavy-duty engraving, carving, and cutting applications across both hard materials like granite and marble, and soft materials like wood, MDF, and acrylic. Designed to meet the needs of fabricators, artisans, and manufacturers, this machine combines strength, precision, and versatility in one powerful solution. Built with a rigid frame, powerful spindle, and advanced motion control system, the machine ensures smooth operation even during high-load stone engraving, while maintaining fine detailing on wood and composite materials.

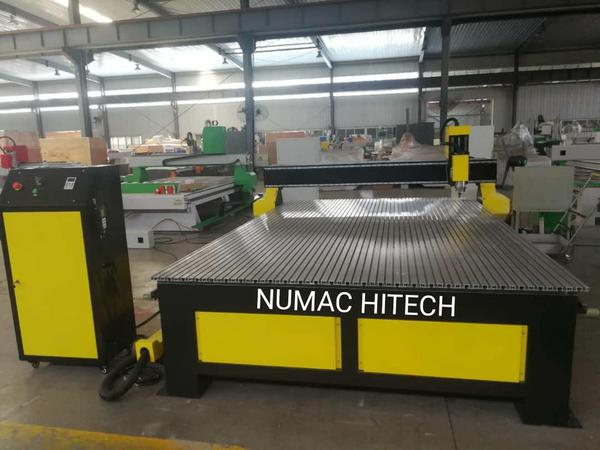

Numac Hitech introduces the compact and powerful 1530 CNC Router Machine, designed for precision cutting, engraving, and milling on a wide range of materials. Engineered for small to medium-scale workshops, this versatile CNC machine is ideal for industries such as signage, woodworking, prototyping, interior design, and customized craft manufacturing. Despite its compact size, the 1530 CNC router delivers industrial-grade performance with smooth motion control, high-speed spindle operation, and precise detailing. It’s perfect for job shops, educational institutions, startups, and artisans seeking affordable automation without compromising on quality.

WELCOME TO NUMAC HITECH .Thank you for your interest. This catalog describes features needed for Wood Engraving - cutting machines. We are offering an excellent quality range of CNC Wood Engravers to our clients. These CNC Wood Engravers are made from very high quality raw materials which ensure high standard of performance and long life. These CNC Wood Engravers are in high demand in the market for high quality and repetitive accuracy. Machine are available in various Models to meet different application & Sizes.

Numac Hitech offers a range of CNC router machines, including models with double spindles, designed to cater to various material processing needs. Below are the technical specifications for their 6090, 1325, and 1530 double spindle CNC router machines: 1. NH6090 2-Spindle CNC Aluminum Router Machine Working Area: 600 x 900 mm Spindle Power: 1-3 kW Spindle Type: Double Spindle Automatic Grade: Automatic Application: Engraving and routing of aluminum, brass, and copper Certification: CE Certified Voltage: 380V Weight: 100-1000 kg Warranty: 1 Year This machine features an advanced mechanism, is easy to maintain, and offers high productivity. NUMACHITECH.COM 2. 1325 CNC Router Machine Working Area: 1300 x 2500 mm Spindle Power Options: 3.5 kW, 4.5 kW, or 6 kW Spindle Speed: 0-18,000 RPM or 0-24,000 RPM Spindle Head Type: Single Spindle Suitable Materials: Wood, MDF, ACP, WPC, Corian, Acrylic Features: Equipped with Easy Servo Motor and Drive (Leadshine) This model is designed for efficient processing of various materials with high precision. NUMACHITECH.COM 3. NH1530 CNC Router Machine Working Area: 1500 x 3000 mm Spindle Power: Customizable based on requirements Spindle Head Type: Single Spindle Suitable Materials: Wood, Acrylic, Plastic, Aluminum, Copper, Brass, MDF, Corian Voltage: 440V Features: Advanced mechanism, high productivity, and low maintenance This machine is versatile and suitable for a wide range of material processing applications. NUMACHITECH.COM For more detailed information or specific inquiries, you can contact Numac Hitech directly: Address: 16-1, Bombay Cotton Mill Estate, Dattaram Lad Path, Kalachowki, Mumbai - 400033, Maharashtra, India Phone: +91-9821026895, +91-8655080774 Email: numachitech@gmail.com

Numac Hitech offers a range of CNC router machines tailored for various applications. Below are the technical specifications for some of their models: 1. 1325 CNC Router Machine Working Area: 1300 x 2500 mm Spindle Power: Options of 3.5 kW, 4.5 kW, or 6 kW Spindle Speed: 18,000 RPM or 24,000 RPM Drive Mechanism: German imported ball screw Motion Positioning Accuracy: ±0.02/300 mm Repositioning Accuracy: ±0.04 mm Maximum Motion Speed: 20,000 mm/min Maximum Working Speed: 18,000 mm/min Engraving Tools: Ø3.175 mm, Ø4 mm, Ø6.00 mm Operating Voltage: AC 220V/50/60Hz Operating System: DSP off-line control system Software Compatibility: Type3, Wentai, ArtCAM Frame Material: Cast iron/aluminum wholly NUMACHITECH.COM 2. 3D Wood CNC Router Machine Brand Name: Numac Hitech Application: Woodworking, acrylic, 2D & 3D work Voltage: 230V AC Features: Advanced mechanism Low maintenance High productivity NUMACHITECH.COM 3. CNC Aluminum Router Machine Rated Power: 1-3 kW Automatic Grade: Automatic Application: Engraving & routing of aluminum, brass, copper Certification: CE Certified Voltage: 380V Features: Advanced mechanism Easy to maintain High productivity NUMACHITECH.COM 4. NH1530 CNC Router Machine Application: Wood, acrylic, plastic, aluminum, copper, brass, MDF, Corian materials Voltage: 440V Type: CNC Router Machine Driven Type: Electric, mechanical Color Options: Black, yellow NUMACHITECH.COM For more detailed information or specific inquiries, you can contact Numac Hitech directly: Address: 16-1, Bombay Cotton Mill Estate, Dattaram Lad Path, Kalachowki, Mumbai - 400033, Maharashtra, India Phone: +91-9821026895, +91-8655080774 Email: numachitech@gmail.com

The Numac Hitech engraving CNC router is a machine designed for precision engraving, carving, and cutting of various materials. While specific details might vary depending on the model and configuration, here are the typical specifications you can expect for such machines: General Specifications: Machine Type: CNC engraving router (also used for milling, carving, and cutting) Control System: Typically uses a numerical control (NC) system, compatible with G-code for precise movement control. Frame: Heavy-duty steel frame or welded steel construction for rigidity and stability. Drive Motors: High-performance servo motors or stepper motors for precise movement. Work Area: Worktable Size: Varies by model but typically ranges from 600mm x 600mm to 1500mm x 3000mm. Z-Axis Travel: Often around 100mm to 300mm, allowing for various material thicknesses. Max Cutting Depth: Typically up to 200mm, depending on the machine. Spindle and Cutting: Spindle Power: Spindle power can range from 1.5 kW to 5 kW, with some models offering higher power for harder materials. Spindle Speed: Speeds generally range from 12,000 to 24,000 RPM. Tool Type: Uses high-speed rotary tools such as engraving bits, routers, and cutters, depending on the material and the precision required. Features: CNC Control System: Commonly equipped with NC Studio or DSP controllers, or even Mach3 software. Precision: High precision, with typical positioning accuracy of 0.01mm and repeatability around 0.005mm. Table Surface: Can include options for vacuum hold-down or T-slot for securing workpieces. Cooling System: Equipped with a water cooling or air cooling system for the spindle to ensure consistent performance. Dust Collection: Some machines come with a dust extraction system to keep the workspace clean during engraving.

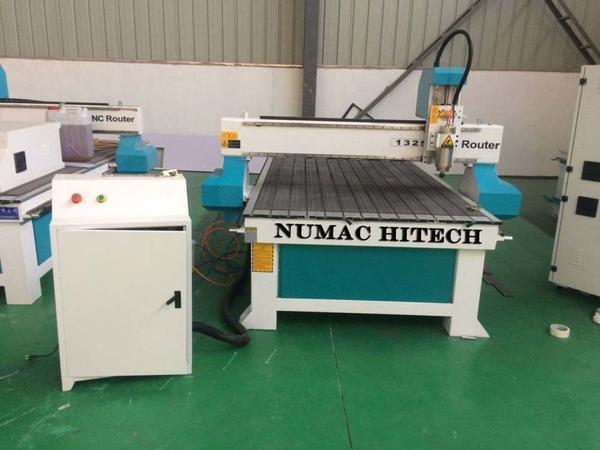

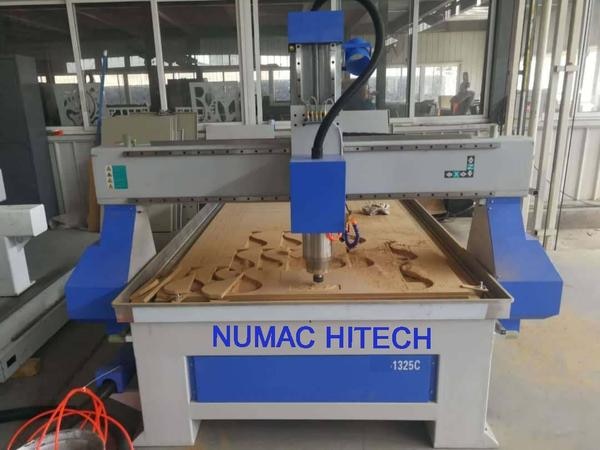

Worktable board (mm) 1300 x 2500 X 200mm/ 300mm Spindle Motor : 3.5KW /4.5KW/ 6 KW Water Cool Spindle / Air cool Rotating Speed of the Spindle : 18000RPM/ 24,000 RPM Working Mode Stepper / Servo Motors Drive Mechanism German imported ball screw Stepper Frame Cast – Iron/ aluminum Wholly Rail Round linear rail Motion positioning accuracy ± 0.02/300mm. Repositioning accuracy ± 0.04mm Max motion Speed 20,000mm/min Max working speed 18,000mm/min Engraving Tools Ø3.175mm, Ø4mm, Ø6.00mm. Dictate Format G code, *uoo, *mmg, *plt Operating voltage AC220V/50/60Hz. Operating system DSP off-line control system. Interface USB. Flash \Memory 128M. Software Type3, Wentai, Art CAM Dust Collector. DSP off-line control Frame Cast – Iron/ aluminum Wholly

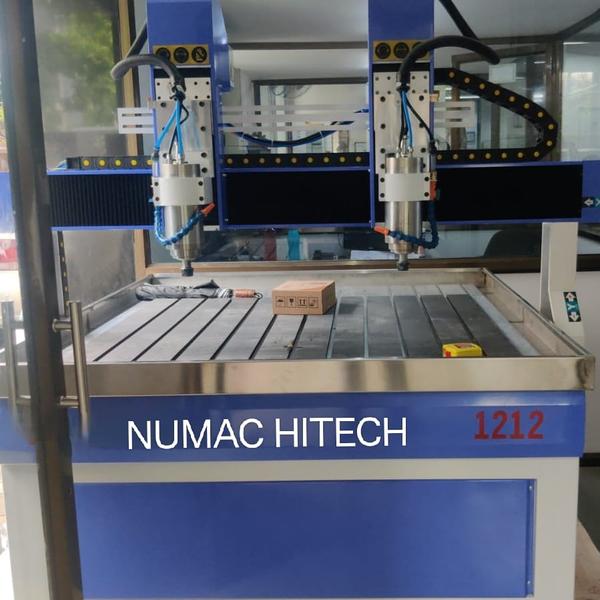

Technical Specification DOUBLE HEAD WOOD CNC ROUTER • Worktable board (mm) : 1200 x 2500 X 3000mm or Zaxis 100mm • Spindle Motor : 3.5KW / 4.5KW / 5.5 KW / 6KW (Water cooling Processor & AIR COOL) • Rotating Speed of the Spindle : 18000RPM / 24,000 RPM • Working Mode : Stepper. • Drive Mechanism : Ballscrew for X,Y,Z Axis • Frame : Cast – Iron/ aluminum Wholly • Rail : round linear rail,round Orbits from Taiwan. • Motion positioning accuracy : ± 0.02/300mm. • Repositioning accuracy : ± 0.01mm • Max motion Speed : 8,000 mm/min • Max working speed : 6,000 mm/min • Engraving Tools : Ø3.175mm, Ø6.00mm. • Dictate Formate : G code, *uoo, *mmg, *plt • Operating voltage : AC220V/50/60Hz. • Operating system : Ncstudio PC control /DSP CONTROLLER • Interface : USB. • Flash Memory : 128M.

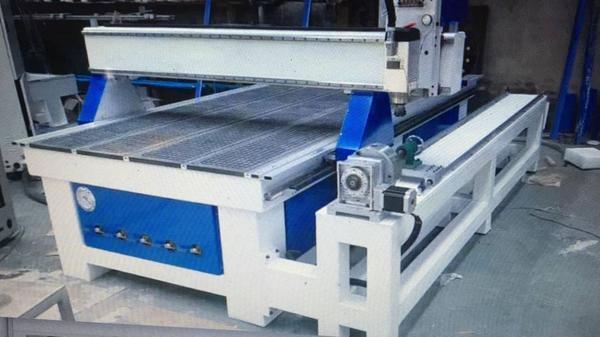

Technical Specification ROTARY AXIS WOOD CNC ROUTER • Worktable board (mm) : 1200 x 2500 X 200mm / 300MM • Spindle Motor : 3.2 KW/ 4.5KW/ 5.5KW (Water cooling Processer) • Rotating Speed of the Spindle : 24,000 RPM • Working Mode : Stepper /SERVO • Drive Mechanism : German imported ball screw Stepper • Frame : Cast – Iron/ aluminum Wholly • Rail : round linear rail • Motion positioning accuracy : ± 0.02/300mm. • Repositioning accuracy : ± 0.04mm • Max motion Speed : 20,000mm/min • Max working speed : 18,000mm/min • Engraving Tools : Ø3.175mm, Ø4mm, Ø6.00mm. • Dictate Formate : G code, *uoo, *mmg, *plt • Operating voltage : AC220V/50/60Hz. • Operating system : DSP off-line control system or Ncstudio PC control. • Interface : USB. • Flash Memory : 128M. • soft ware : Type3, Wentai, Art CAM software. • Net weight : 1300Kg.
