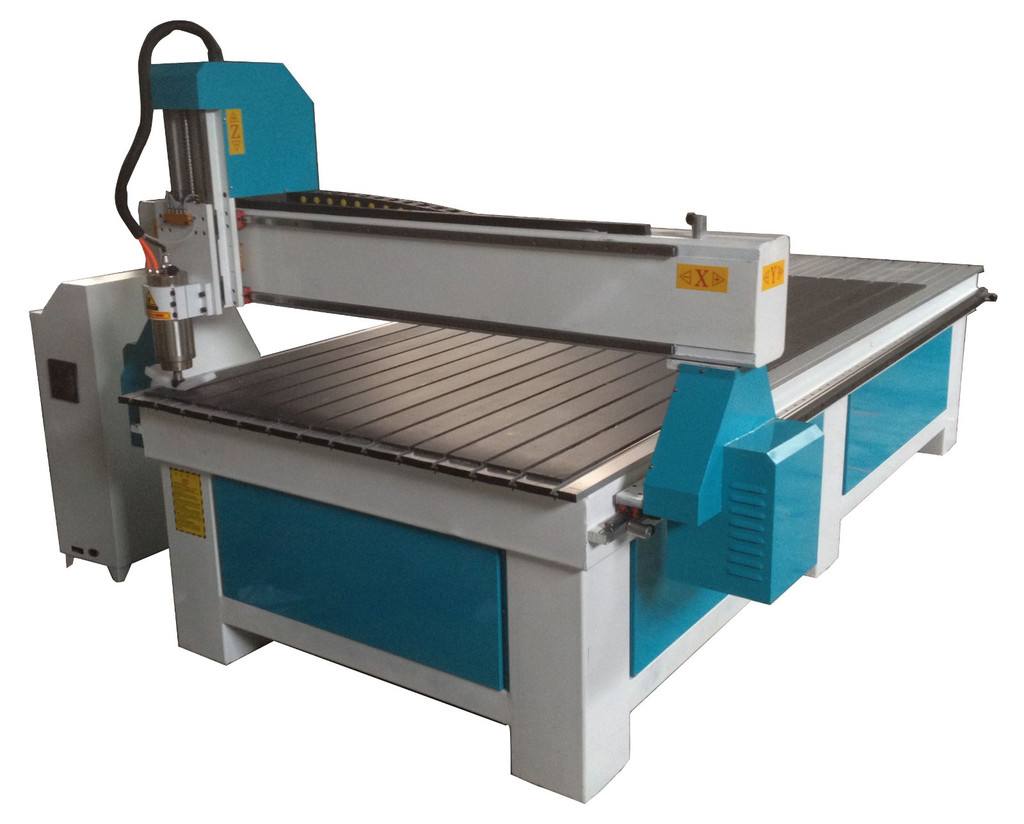

1325 WOOD CNC ROUTER MACHINE
INR 380000
In stock
Description
Technical Specification
Worktable board (mm) : 1300 x 2500 X 200mm /300MM
Spindle Motor : 3.5KW /4.5KW/ 6 KW Water Cool Spindle
Rotating Speed of the Spindle 18000RPM/ 24,000 RPM
Working Mode Stepper / Servo Motors
Drive Mechanism German imported ball screw Stepper
Frame Cast – Iron/ aluminum Wholly
Rail Round linear rail
Motion positioning accuracy ± 0.02/300mm.
Repositioning accuracy ± 0.04mm
Max motion Speed 20,000mm/min
Max working speed 18,000mm/min
Engraving Tools Ø3.175mm, Ø4mm, Ø6.00mm.
Dictate Format G code, *uoo, *mmg, *plt
Operating voltage AC220V/50/60Hz.
Operating system DSP off-line control system.
Interface USB.
Flash \Memory 128M.
Software Type3, Wentai, Art CAM
Dust Collector. DSP off-line control
Frame Cast – Iron/ aluminum Wholly
