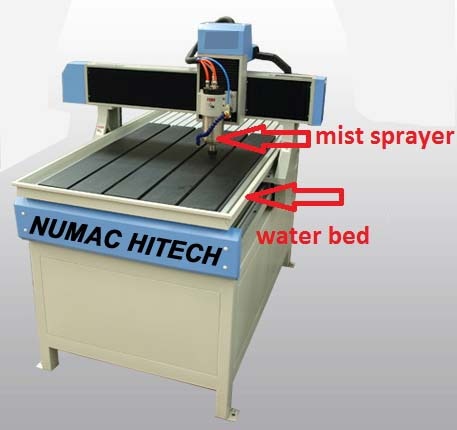

6090 WOOD CNC ROUTER

Technical Specification

• Worktable board (mm) : 600 x 900 X 80mm /100mm / 120MM

• Spindle Motor : 2.2KW / 3KW (Water cooling Processor)

• Rotating Speed of the Spindle : 24,000 RPM

• Working Mode : Stepper.

• Drive Mechanism : Ballscrew for X,Y,Z Axis

• Frame : Cast – Iron/ aluminum Wholly

• Rail : Round linear Rail,round Orbits from Taiwan.

• Motion positioning accuracy : ± 0.02/300mm.

• Repositioning accuracy : ± 0.01mm

• Max motion Speed : 8,000 mm/min

• Max working speed : 6,000 mm/min

• Engraving Tools : Ø3.175mm, Ø6.00mm.

• Dictate Formate : G code, *uoo, *mmg, *plt

• Operating voltage : AC220V/50/60Hz.

• Operating system : Ncstudio PC control/ DSP CONTROLLER

• Interface : USB.

• Flash Memory : 128M.
