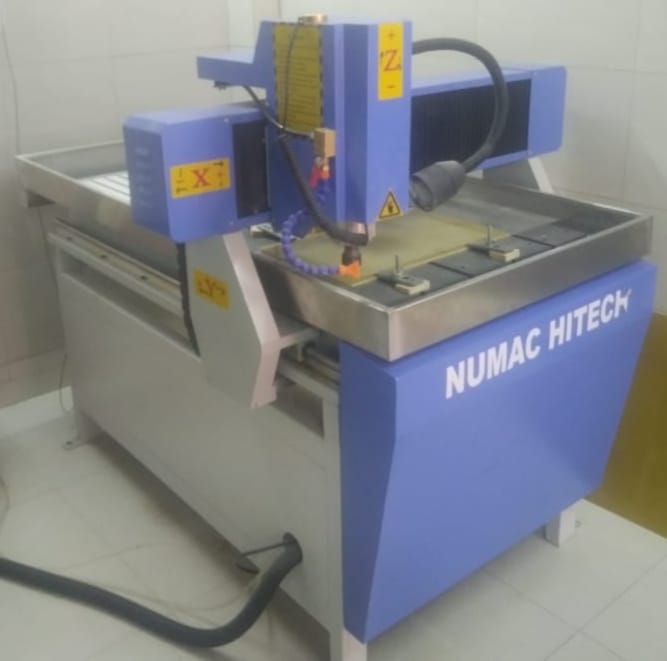

BRASS ENGRAVING CNC ROUTER MACHINE

Technical Specification

• Worktable board (mm) : 1200 x 2500 X 200mm/300MM

• Spindle Motor : 3.2 KW/ 4.5KW/ 5.5KW (Water cooling Processer)

• Rotating Speed of the Spindle : 24,000 RPM

• Working Mode : Stepper.

• Drive Mechanism : German imported ball screw Stepper

• Frame : Cast – Iron/ aluminum Wholly

• Rail : round linear rail

• Motion positioning accuracy : ± 0.02/300mm.

• Repositioning accuracy : ± 0.04mm

• Max motion Speed : 20,000mm/min

• Max working speed : 18,000mm/min

• Engraving Tools : Ø3.175mm, Ø4mm, Ø6.00mm.

• Dictate Formate : G code, *uoo, *mmg, *plt

• Operating voltage : AC220V/50/60Hz.

• Operating system : DSP off-line control system

or Ncstudio PC control.

• Interface : USB.

• Flash Memory : 128M.

• soft ware : Type3, Wentai, Art CAM software.

• Net weight : 1300Kg.
