cnc wood router wood

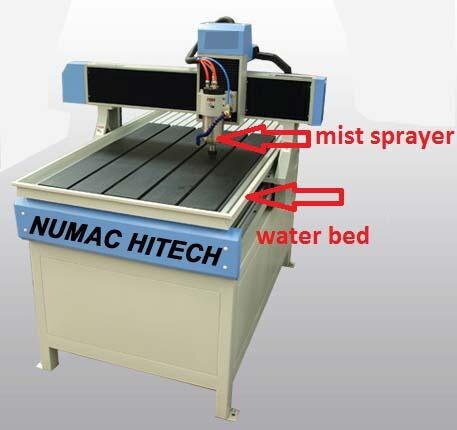

Technical Specification • Worktable board (mm) : 600 x 900 X 80mm /100mm / 120MM • Spindle Motor : 2.2KW / 3KW (Water cooling Processor) • Rotating Speed of the Spindle : 24,000 RPM • Working Mode : Stepper. • Drive Mechanism : Ballscrew for X,Y,Z Axis • Frame : Cast – Iron/ aluminum Wholly • Rail : Round linear Rail,round Orbits from Taiwan. • Motion positioning accuracy : ± 0.02/300mm. • Repositioning accuracy : ± 0.01mm • Max motion Speed : 8,000 mm/min • Max working speed : 6,000 mm/min • Engraving Tools : Ø3.175mm, Ø6.00mm. • Dictate Formate : G code, *uoo, *mmg, *plt • Operating voltage : AC220V/50/60Hz. • Operating system : Ncstudio PC control/ DSP CONTROLLER • Interface : USB. • Flash Memory : 128M.

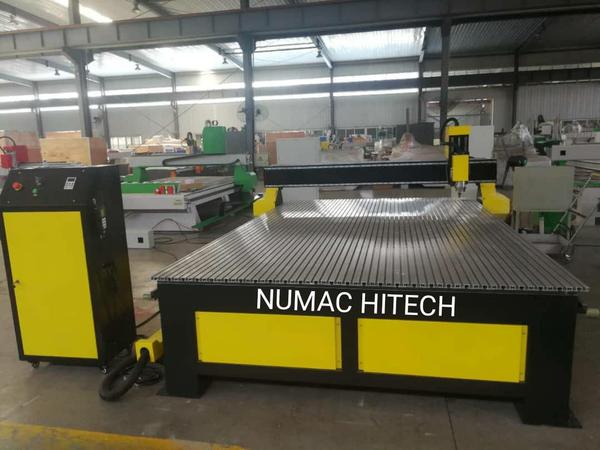

Technical Specification • Worktable board (mm) : 1500 x 3000 X 200mm/ 300MM/500MM • Spindle Motor : 3.2 KW/ 4.5KW/ 5.5KW (Water cooling Processor) • Rotating Speed of the Spindle : 24,000 RPM • Working Mode : Stepper / SERVO • Drive Mechanism : German imported ball screw Stepper • Frame : Cast – Iron/ aluminum Wholly • Rail : round linear rail • Motion positioning accuracy : ± 0.02/300mm. • Repositioning accuracy : ± 0.04mm • Max motion Speed : 20,000mm/min • Max working speed : 18,000mm/min • Engraving Tools : Ø3.175mm, Ø4mm, Ø6.00mm. • Dictate Formate : G code, *uoo, *mmg, *plt • Operating voltage : AC220V/50/60Hz. • Operating system : DSP off-line control system or Ncstudio PC control. • Interface : USB. • Flash Memory : 128M. • soft ware : Type3, Wentai, Art CAM software. • Net weight : 1300Kg.
