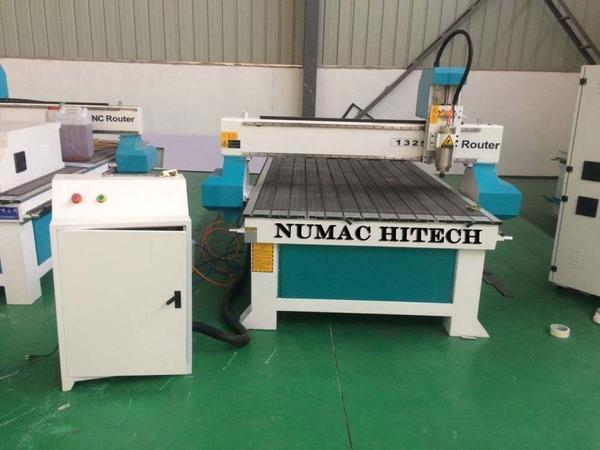

Numac Hitech offers a range of CNC router machines tailored for various applications. Below are the technical specifications for some of their models: 1. 1325 CNC Router Machine Working Area: 1300 x 2500 mm Spindle Power: Options of 3.5 kW, 4.5 kW, or 6 kW Spindle Speed: 18,000 RPM or 24,000 RPM Drive Mechanism: German imported ball screw Motion Positioning Accuracy: ±0.02/300 mm Repositioning Accuracy: ±0.04 mm Maximum Motion Speed: 20,000 mm/min Maximum Working Speed: 18,000 mm/min Engraving Tools: Ø3.175 mm, Ø4 mm, Ø6.00 mm Operating Voltage: AC 220V/50/60Hz Operating System: DSP off-line control system Software Compatibility: Type3, Wentai, ArtCAM Frame Material: Cast iron/aluminum wholly NUMACHITECH.COM 2. 3D Wood CNC Router Machine Brand Name: Numac Hitech Application: Woodworking, acrylic, 2D & 3D work Voltage: 230V AC Features: Advanced mechanism Low maintenance High productivity NUMACHITECH.COM 3. CNC Aluminum Router Machine Rated Power: 1-3 kW Automatic Grade: Automatic Application: Engraving & routing of aluminum, brass, copper Certification: CE Certified Voltage: 380V Features: Advanced mechanism Easy to maintain High productivity NUMACHITECH.COM 4. NH1530 CNC Router Machine Application: Wood, acrylic, plastic, aluminum, copper, brass, MDF, Corian materials Voltage: 440V Type: CNC Router Machine Driven Type: Electric, mechanical Color Options: Black, yellow NUMACHITECH.COM For more detailed information or specific inquiries, you can contact Numac Hitech directly: Address: 16-1, Bombay Cotton Mill Estate, Dattaram Lad Path, Kalachowki, Mumbai - 400033, Maharashtra, India Phone: +91-9821026895, +91-8655080774 Email: numachitech@gmail.com

Numac Hitech, established in 2010 and based in Mumbai, Maharashtra, specializes in manufacturing and supplying CNC stone engraving routers designed for precision and efficiency in stone processing applications. ​​ Key Features of Numac Hitech's CNC Engraving Routers: Versatile Applications: Capable of engraving and cutting various stone materials, including granite, marble, and sandstone, making them suitable for industries such as monument crafting, architectural detailing, and decorative art. ​​ High-Performance Spindles: Equipped with robust spindles operating at high speeds, ensuring smooth and precise operations on hard stone surfaces. ​​ Robust Construction: Built with heavy-duty frames and components to withstand the rigors of stone machining, ensuring durability and consistent performance. ​​ Advanced Control Systems: Utilize user-friendly interfaces compatible with various design software, facilitating efficient workflow management and intricate design execution. ​​ Customization Options: Available in different models, such as the CNC Engraving Machine, to meet diverse application needs and accommodate various stone sizes and thicknesses. ​​Numac Hitech's CNC engraving routers are engineered to deliver high productivity and precision, catering to both small-scale and large-scale stone engraving projects. Their commitment to quality and innovation has established them as a reputable manufacturer in the CNC machinery industry. ​​​​

Technical Specification Worktable board (mm) 1300 x 2500 X 300mm Spindle Motor 6 KW Water Cool Spindle Rotating Speed of the Spindle 18000RPM/ 24,000 RPM Working Mode Stepper / Servo Motors Drive Mechanism German imported ball screw Stepper Water Tray : material S.S Frame Cast – Iron/ aluminum Wholly Rail Round linear rail Motion positioning accuracy ± 0.02/300mm. Repositioning accuracy ± 0.04mm Max motion Speed 20,000mm/min Max working speed 18,000mm/min Engraving Tools Ø3.175mm, Ø4mm, Ø6.00mm. Dictate Format G code, *uoo, *mmg, *plt Operating voltage AC220V/50/60Hz. Operating system DSP off-line control system. Interface USB. Flash \Memory 128M. Software Type3, Wentai, Art CAM Dust Collector. DSP off-line control Frame Cast – Iron/ aluminum Wholly

Technical Specification Worktable board (mm) : 1300 x 2500 X 200mm /300MM Spindle Motor : 3.5KW /4.5KW/ 6 KW Water Cool Spindle Rotating Speed of the Spindle 18000RPM/ 24,000 RPM Working Mode Stepper / Servo Motors Drive Mechanism German imported ball screw Stepper Frame Cast – Iron/ aluminum Wholly Rail Round linear rail Motion positioning accuracy ± 0.02/300mm. Repositioning accuracy ± 0.04mm Max motion Speed 20,000mm/min Max working speed 18,000mm/min Engraving Tools Ø3.175mm, Ø4mm, Ø6.00mm. Dictate Format G code, *uoo, *mmg, *plt Operating voltage AC220V/50/60Hz. Operating system DSP off-line control system. Interface USB. Flash \Memory 128M. Software Type3, Wentai, Art CAM Dust Collector. DSP off-line control Frame Cast – Iron/ aluminum Wholly

Worktable board (mm) 1300 x 2500 X 200mm/ 300mm Spindle Motor : 3.5KW /4.5KW/ 6 KW Water Cool Spindle / Air cool Rotating Speed of the Spindle : 18000RPM/ 24,000 RPM Working Mode Stepper / Servo Motors Drive Mechanism German imported ball screw Stepper Frame Cast – Iron/ aluminum Wholly Rail Round linear rail Motion positioning accuracy ± 0.02/300mm. Repositioning accuracy ± 0.04mm Max motion Speed 20,000mm/min Max working speed 18,000mm/min Engraving Tools Ø3.175mm, Ø4mm, Ø6.00mm. Dictate Format G code, *uoo, *mmg, *plt Operating voltage AC220V/50/60Hz. Operating system DSP off-line control system. Interface USB. Flash \Memory 128M. Software Type3, Wentai, Art CAM Dust Collector. DSP off-line control Frame Cast – Iron/ aluminum Wholly

Technical Specification • Worktable board (mm) : 1200 x 2500 X 200mm/300MM • Spindle Motor : 3.2 KW/ 4.5KW/ 5.5KW (Water cooling Processer) • Rotating Speed of the Spindle : 24,000 RPM • Working Mode : Stepper. • Drive Mechanism : German imported ball screw Stepper • Frame : Cast – Iron/ aluminum Wholly • Rail : round linear rail • Motion positioning accuracy : ± 0.02/300mm. • Repositioning accuracy : ± 0.04mm • Max motion Speed : 20,000mm/min • Max working speed : 18,000mm/min • Engraving Tools : Ø3.175mm, Ø4mm, Ø6.00mm. • Dictate Formate : G code, *uoo, *mmg, *plt • Operating voltage : AC220V/50/60Hz. • Operating system : DSP off-line control system or Ncstudio PC control. • Interface : USB. • Flash Memory : 128M. • soft ware : Type3, Wentai, Art CAM software. • Net weight : 1300Kg.

Technical Specification • Worktable board (mm) : 1200 x 2500 X 200mm/300MM • Spindle Motor : 3.2 KW/ 4.5KW/ 5.5KW (Water cooling Processer) • Rotating Speed of the Spindle : 24,000 RPM • Working Mode : Stepper / SERVO • Drive Mechanism : German imported ball screw Stepper • Frame : Cast – Iron/ aluminum Wholly • Rail : round linear rail • Motion positioning accuracy : ± 0.02/300mm. • Repositioning accuracy : ± 0.04mm • Max motion Speed : 20,000mm/min • Max working speed : 18,000mm/min • Engraving Tools : Ø3.175mm, Ø4mm, Ø6.00mm. • Dictate Formate : G code, *uoo, *mmg, *plt • Operating voltage : AC220V/50/60Hz. • Operating system : DSP off-line control system or Ncstudio PC control. • Interface : USB. • Flash Memory : 128M. • soft ware : Type3, Wentai, Art CAM software. • Net weight : 1300Kg.

Technical Specification • Worktable board (mm) : 1200 x 2500 X 200mm/300MM • Spindle Motor : 3.2 KW/ 4.5KW/ 5.5KW (Water cooling Processor) • Rotating Speed of the Spindle : 24,000 RPM • Working Mode : Stepper. • Drive Mechanism : German imported ball screw Stepper • Frame : Cast – Iron/ aluminum Wholly • Rail : round linear rail • Motion positioning accuracy : ± 0.02/300mm. • Repositioning accuracy : ± 0.04mm • Max motion Speed : 20,000mm/min • Max working speed : 18,000mm/min • Engraving Tools : Ø3.175mm, Ø4mm, Ø6.00mm. • Dictate Formate : G code, *uoo, *mmg, *plt • Operating voltage : AC220V/50/60Hz. • Operating system : DSP off-line control system or Ncstudio PC control. • Interface : USB. • Flash Memory : 128M. • soft ware : Type3, Wentai, Art CAM software. • Net weight : 1300Kg.

Technical Specification • Worktable board (mm) : 1200 x 2500 X 200mm/300MM • Spindle Motor : 3.2 KW/ 4.5KW/ 5.5KW (Water cooling Processor) • Rotating Speed of the Spindle : 24,000 RPM • Working Mode : Stepper / SERVO • Drive Mechanism : German imported ball screw Stepper • Frame : Cast – Iron/ aluminum Wholly • Rail : round linear rail • Motion positioning accuracy : ± 0.02/300mm. • Repositioning accuracy : ± 0.04mm • Max motion Speed : 20,000mm/min • Max working speed : 18,000mm/min • Engraving Tools : Ø3.175mm, Ø4mm, Ø6.00mm. • Dictate Formate : G code, *uoo, *mmg, *plt • Operating voltage : AC220V/50/60Hz. • Operating system : DSP off-line control system or Ncstudio PC control. • Interface : USB. • Flash Memory : 128M. • soft ware : Type3, Wentai, Art CAM software. • Net weight : 1300Kg.
